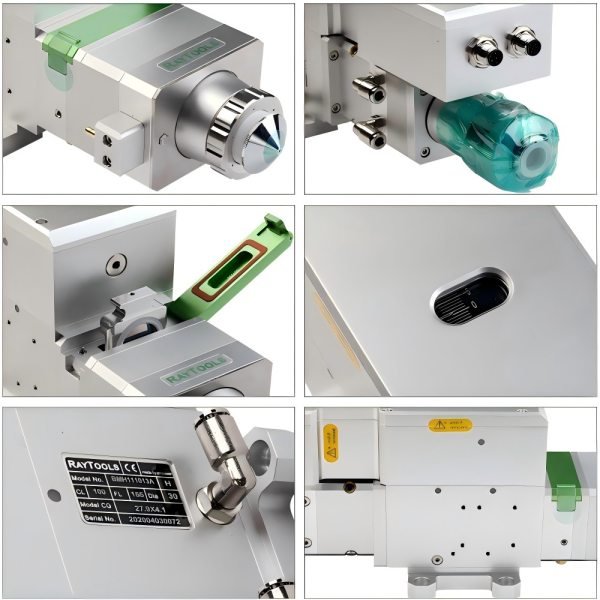

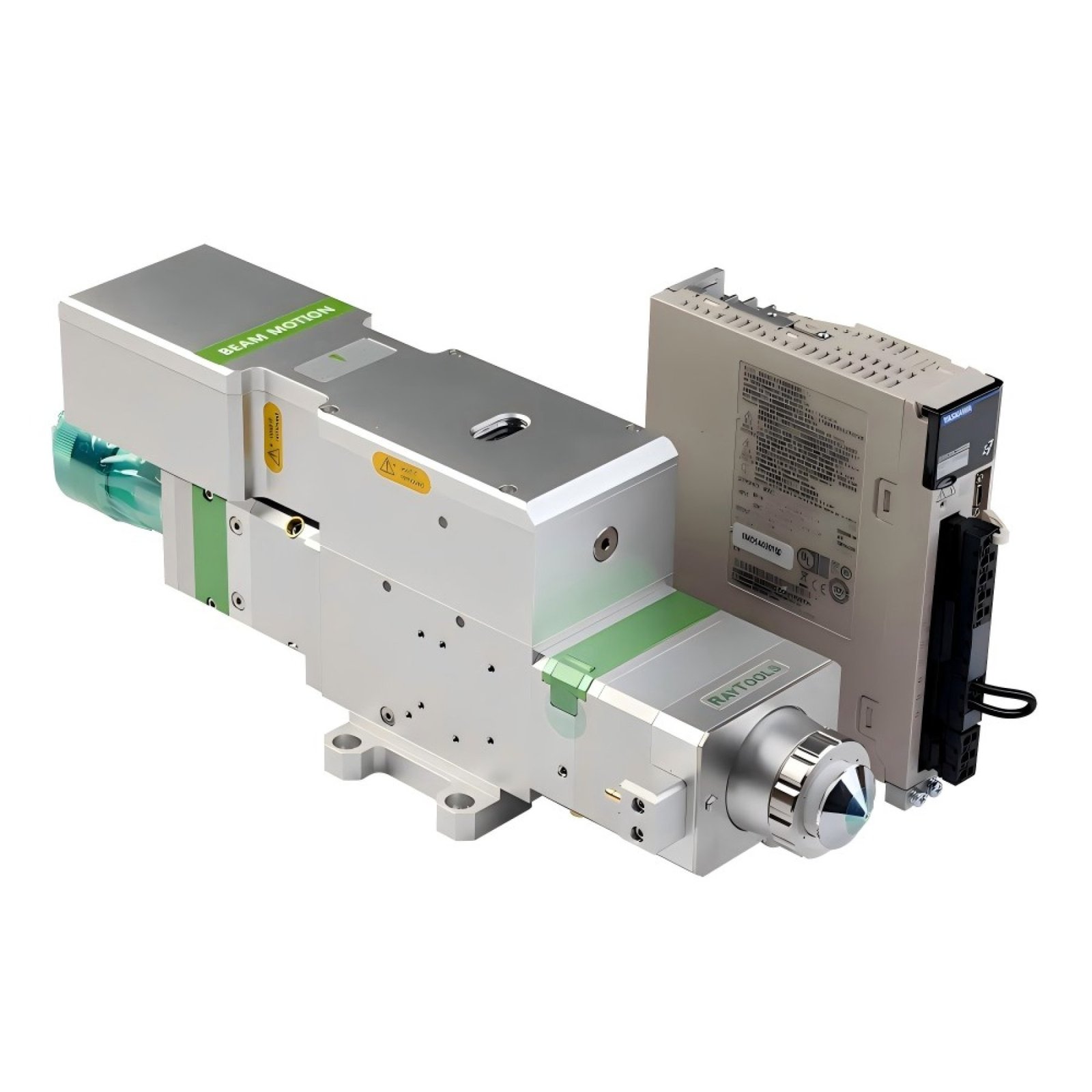

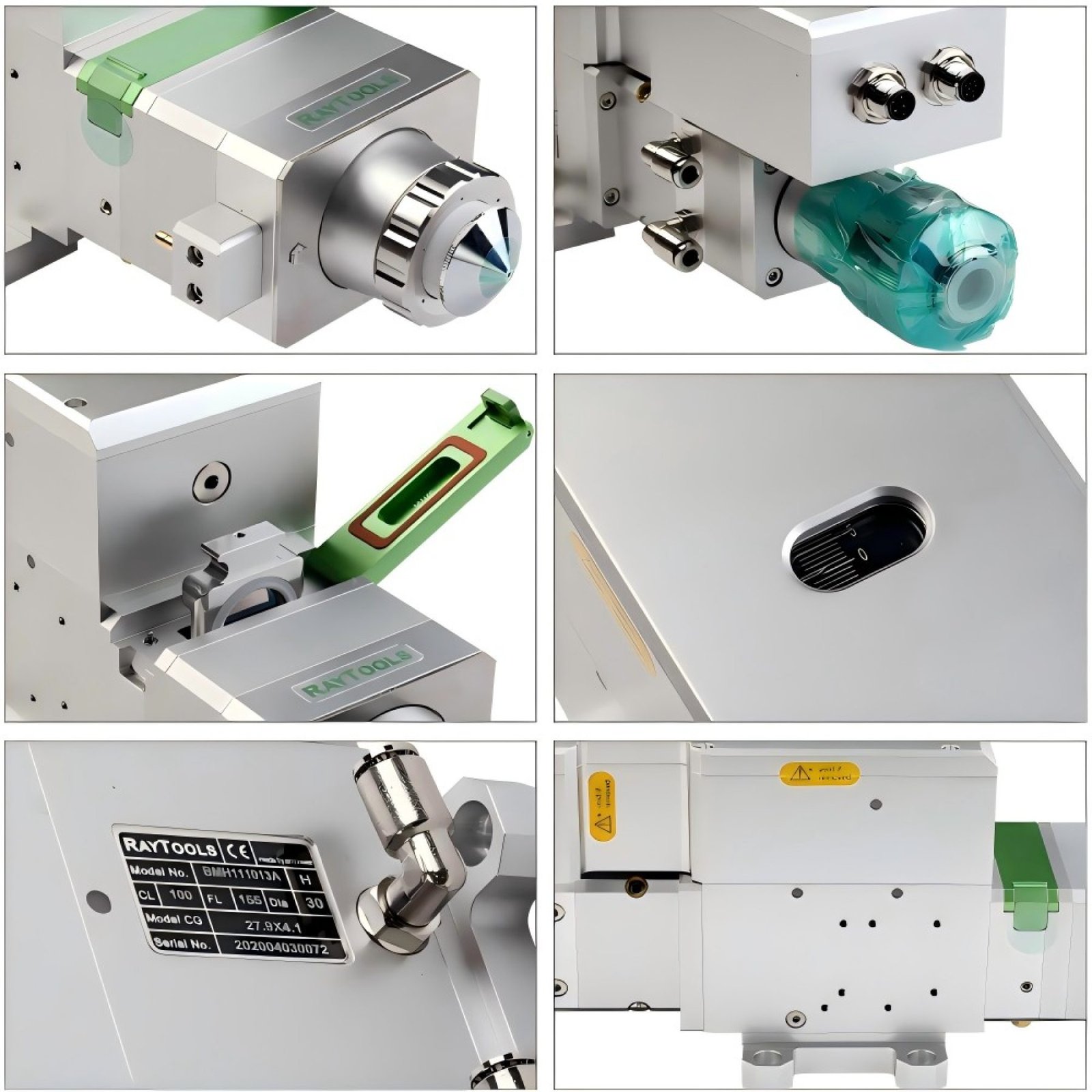

Raytools BM111 0 3 3kW Auto Focusing Fiber Laser Cutting Head 100 200

Features
1. Optimized optical configuration and smooth and efficient airflow design.
2.Automatic focusing range +10~-12mm, adjustment accuracy 0.05mm.
3. Equipped with D30 composite lens groups, the maximum fiber power is up to 3kW.
4. Maximum acceleration of focus lens driver 10m /s2, maximum speed 10m / min.
5. Equipped with QBH, QD and other fiber interfaces can match with various fiber lasers.
6. The drawer-type of lens mount makes the replacement of protective lens more quicklyand easier.
7. The composite lens groups are used for beam collimating and focusing to obtain thebest optical quality and cutting effect.
