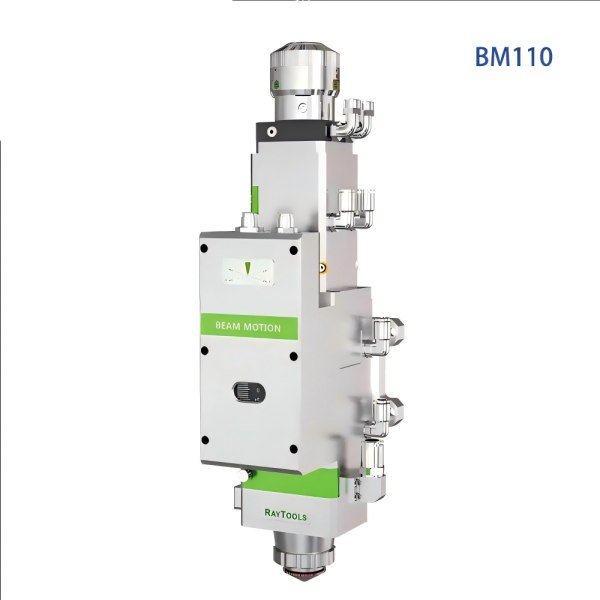

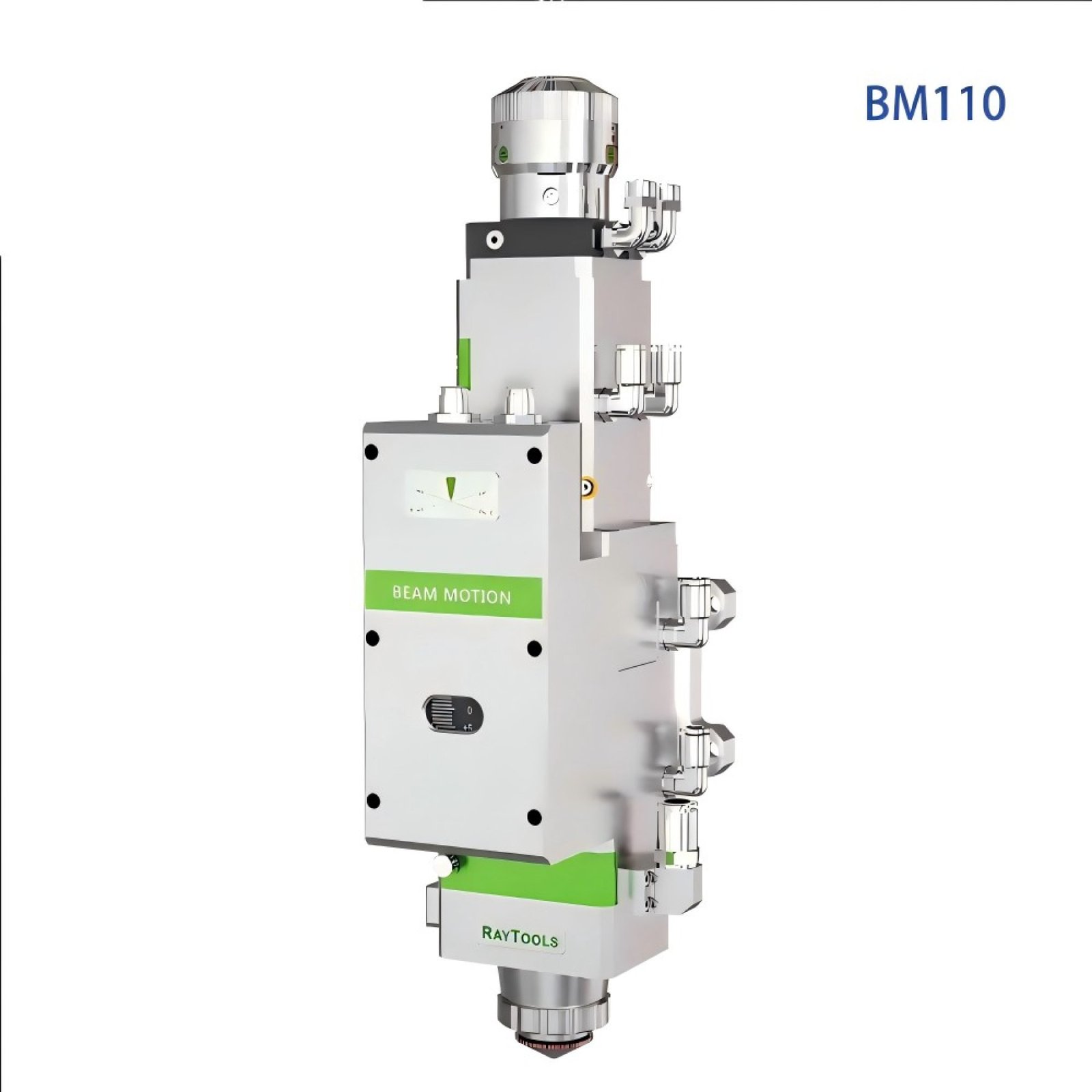

3KW Raytools BM110 FC 2D AutoFocus Fiber Laser Cutting Head 100 150

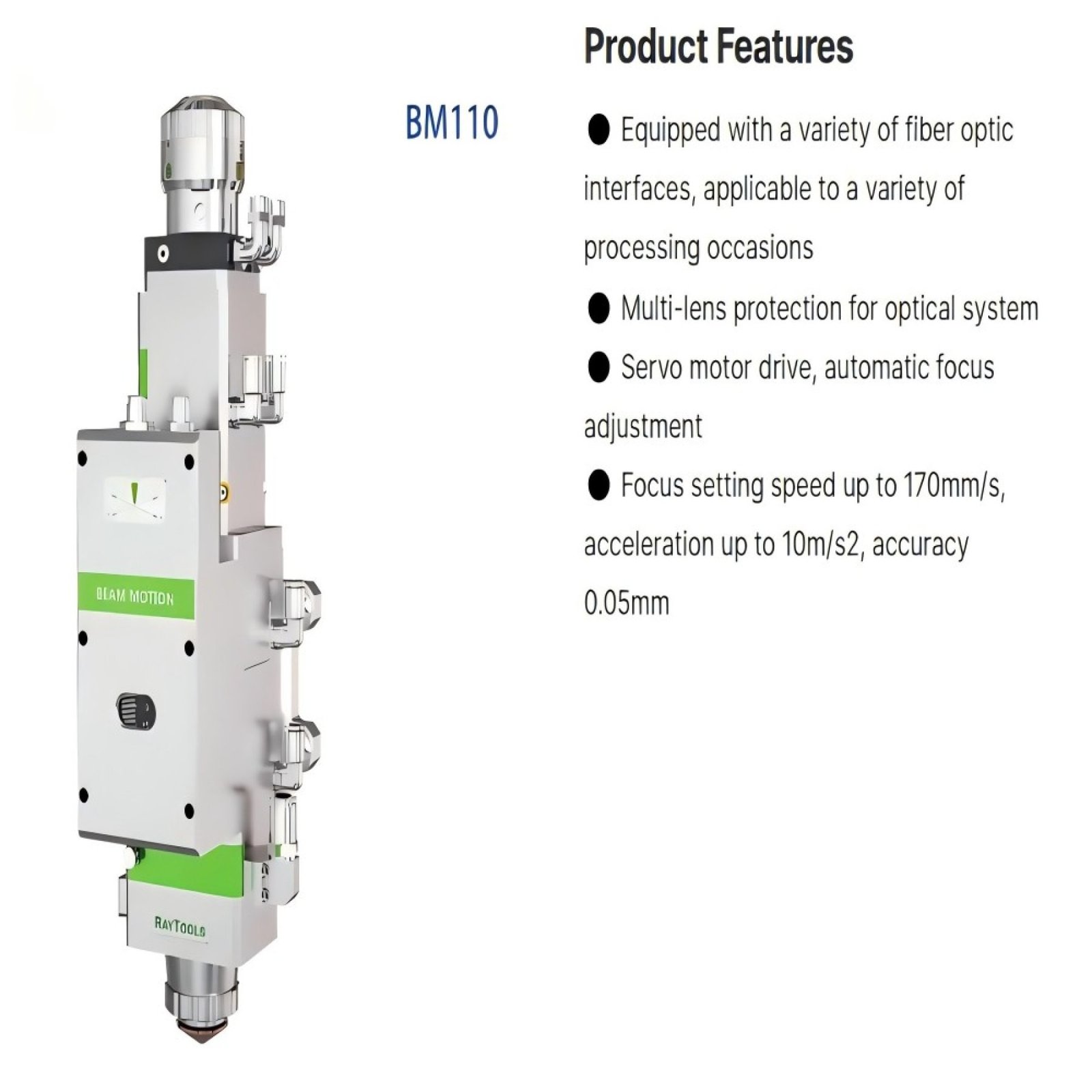

Product Features
1.0ptimized optical configuration and smooth and efficient airflow design;
2.Automatic focusing range +10 ~ -14mm, adjustment accuracy 0.05mm;
3.Equipped with D30 composite lens groups, the maximum fiber power is up to 3.3KW;
4.Maximum acceleration of focus lens driver 10m/s2 , maximum speed 6m / min;
5.Extra one cover glass above collimator, effectively prevent the damage of collimatinglens due to dust;
6.The drawer-type of lens mount makes the replacement of protective lens more quicklyand easier;

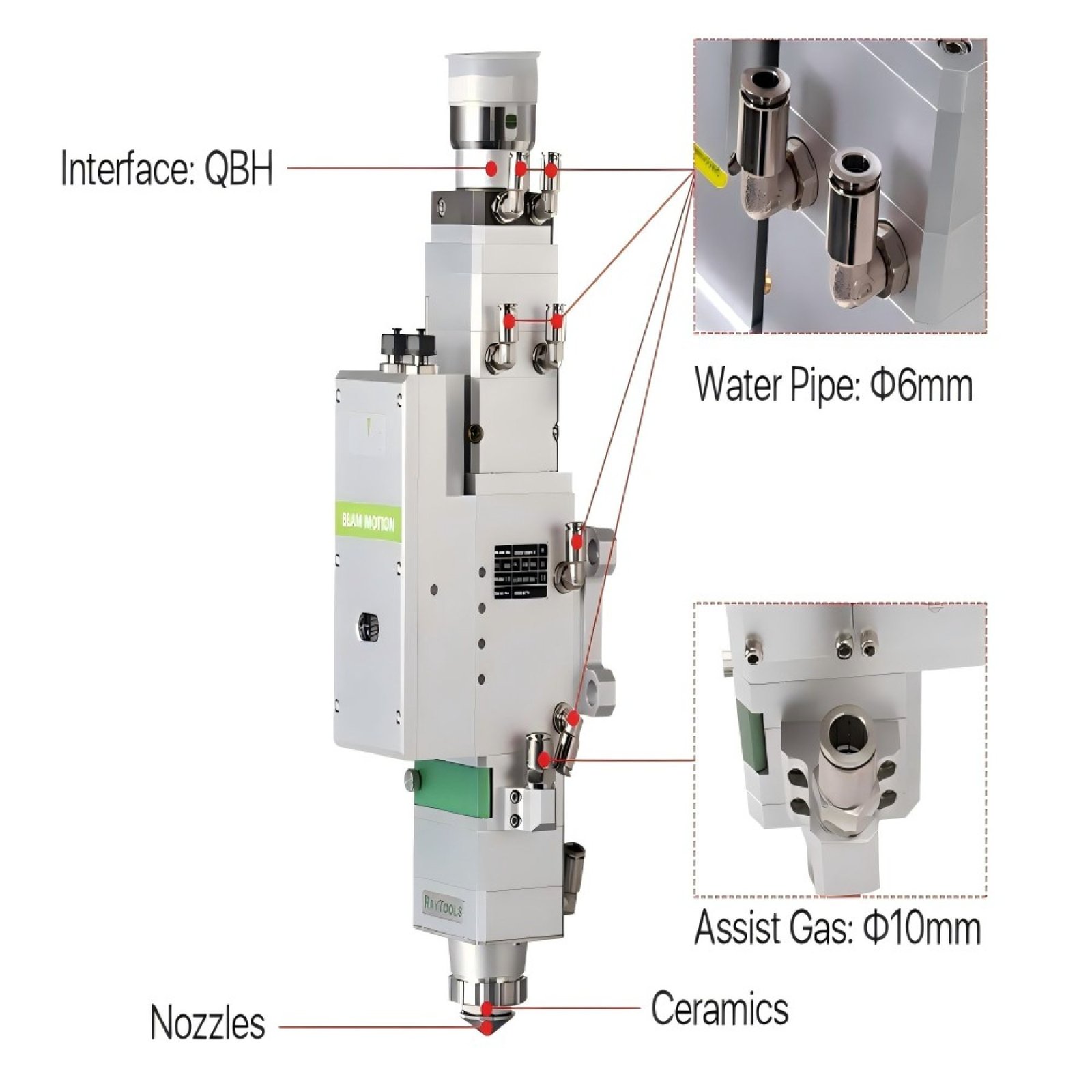

7.Equipped fiber interfaces QBH, QD, which can be adapted to various fiber laser sources
